Guide e Viti

BRANDS INDEX

  UM Packaging code description + Brand + Models + Original Ref. Drawing
NR 1 58.301 GUIDA PISTONE ANGOLARE Inferiore - Superiore
50 x 50 x 5 - L=1182 (3+3 Fori) (details)

Use on Ama, Mod.145, Mod.153, Mod.163, Mod.263
Original Ref.: 207-048		 58.301

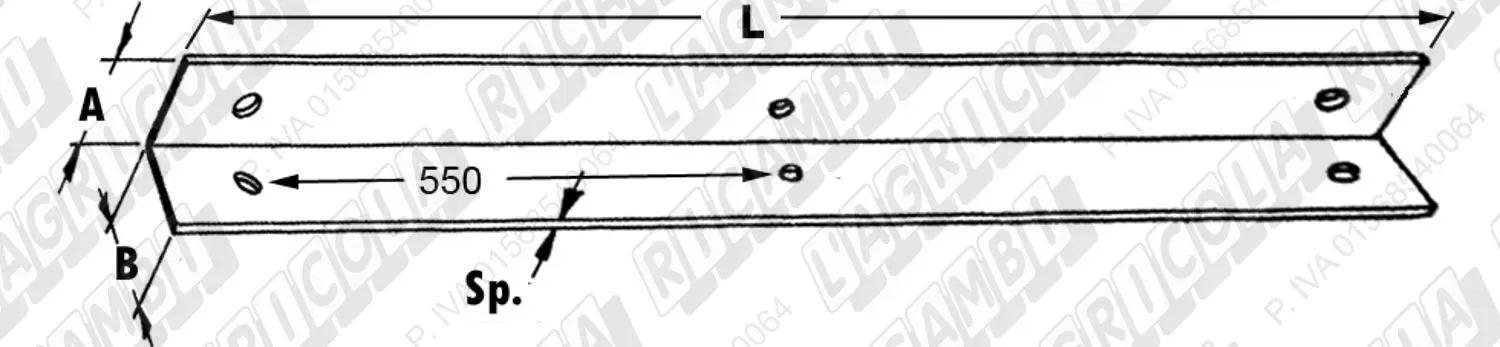

NR 1 58.302 GUIDA PISTONE ANGOLARE Inferiore - Superiore
50 x 50 x 5 - L=1230 (3+3 Fori) (details)

Use on Ama, Mod.175
Original Ref.: P75-393		 58.302
NR 1 58.303 GUIDA PISTONE ANGOLARE Inferiore
50 x 50 x 5 - L=1160 (3+3 Fori) (details)

Use on Ama, Mod.183, Mod.283
Original Ref.: 307-004		 58.303

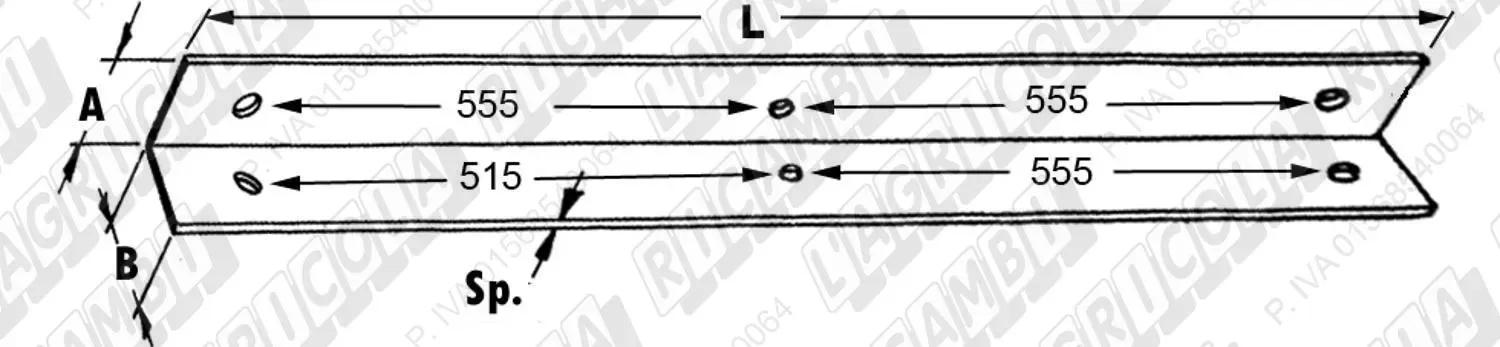

NR 1 58.306 GUIDA PISTONE ANGOLARE Inferiore - Superiore
50 x 50 x 6 - L=1232 (3+3 Fori) (details)

Use on Sgorbati, Mod.131, Mod.132, Mod.133, Mod.134, Mod.138, Mod.230
Original Ref.: 11/11302; 11/11304		 58.306

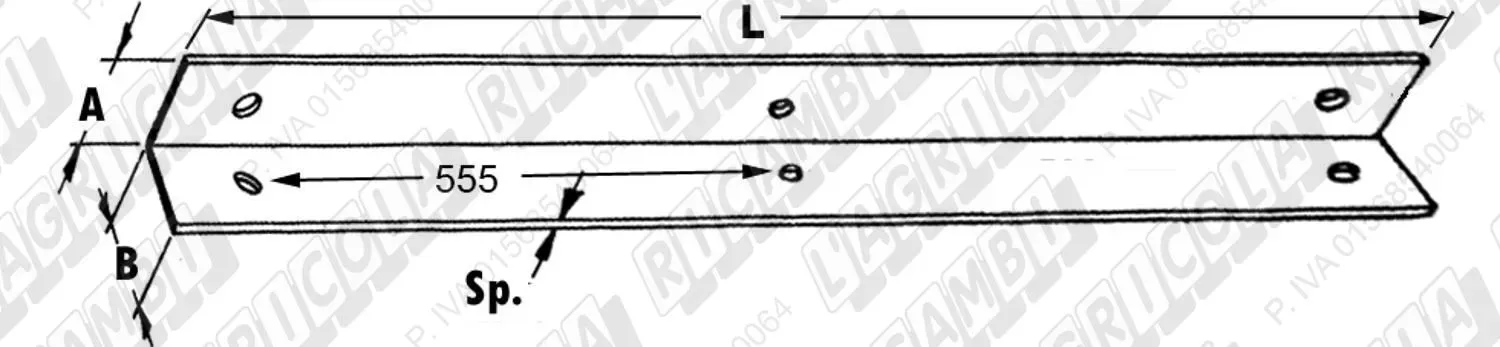

NR 1 58.307 GUIDA PISTONE ANGOLARE Inferiore - Superiore
60 x 60 x 7 - L=1230 (3+3 Fori) (details)

Use on Gallignani, Mod.146, Mod.148/S, Mod.5000, Mod.5100, Mod.5190, Mod.6000, Mod.6100, Mod.6190
Original Ref.: 05.03.046; 09.03.046		 58.307
NR 1 58.308 GUIDA PISTONE ANGOLARE Inferiore
80 x 80 x 7 - L=1234 (3+3 Fori) (details)

Use on Gallignani,
Mod.148/S, Mod.6000, Mod.6100, Mod.6190
Original Ref.: 15.03.047		 58.308

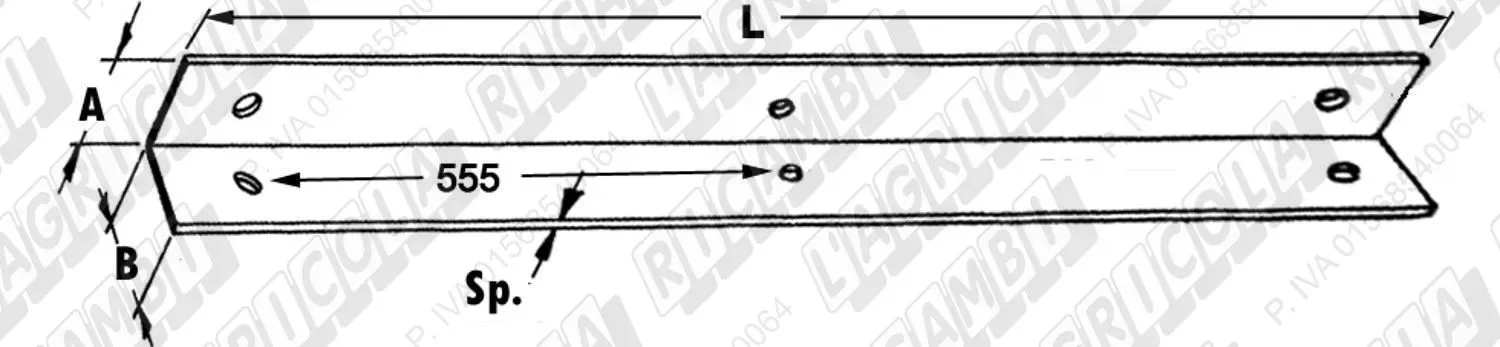

NR 1 58.309 GUIDA PISTONE ANGOLARE Superiore
60 x 60 x 7 - L=1280 (3+3 Fori) (details)

Use on Gallignani,
Mod.149, Mod.149/S, Mod.7000, Mod.7100, Mod.7190
Original Ref.: 19.03.046		 58.309

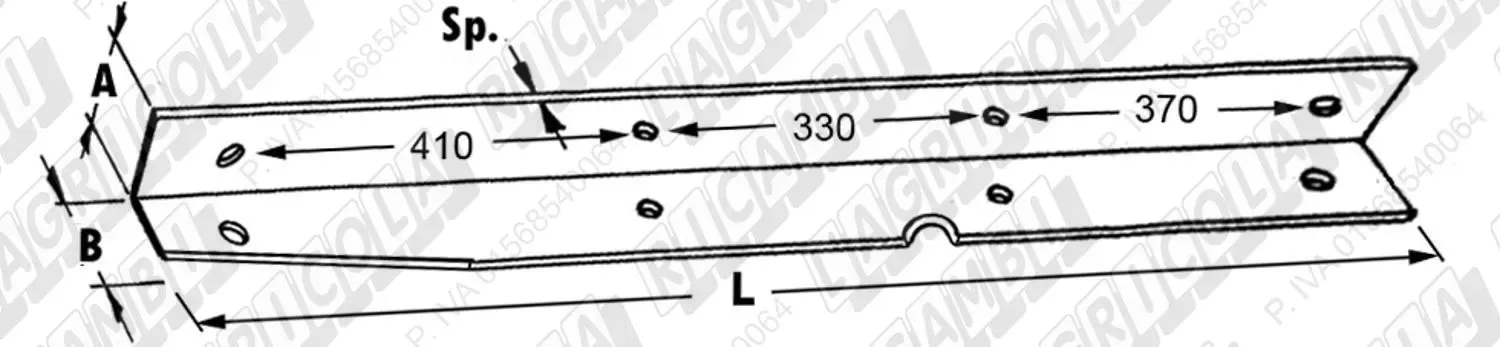

NR 1 58.310 GUIDA PISTONE ANGOLARE Inferiore
75 x 85 x 7 - L=1280 (4+4 Fori) (details)

Use on Gallignani,
Mod.149, Mod.149/S, Mod.7000, Mod.7100, Mod.7190
Original Ref.: 19.03.047		 58.310
NR 1 58.312 GUIDA PISTONE PIATTA Inferiore
50 x 5 - L=1162 (4 Fori) (details)

Use on Ama, Mod.175
Original Ref.: P75-403		 58.312
NR 1 58.314 GUIDA PISTONE PIATTA Inferiore
50 x 5 - L=1350 (4 Fori) (details)

Use on Ama, Mod.183, Mod.283
Original Ref.: 307-028		 58.314

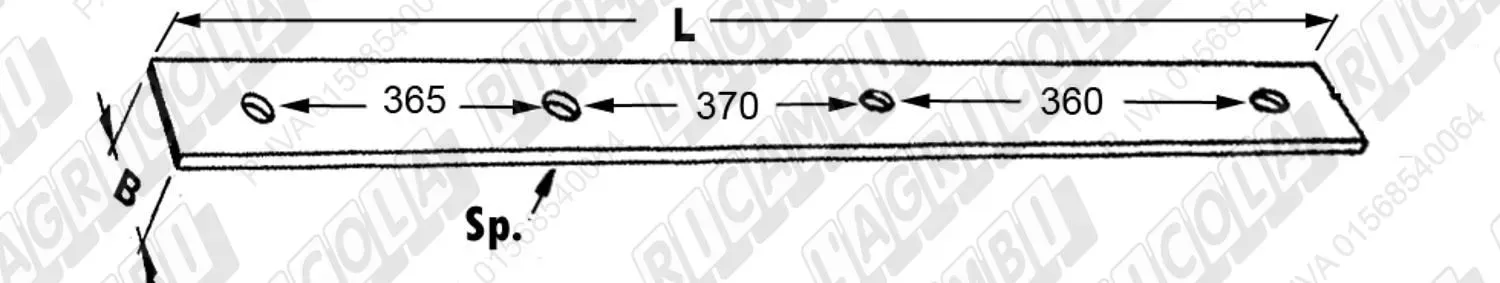

NR 1 58.315 GUIDA PISTONE PIATTA Inferiore
50 x 6 - L=1245 (4 Fori) (details)

Use on Sgorbati, Mod. 69, Mod.169, Mod.171, Mod.181
Original Ref.: 1111/4110; 48853		 58.315

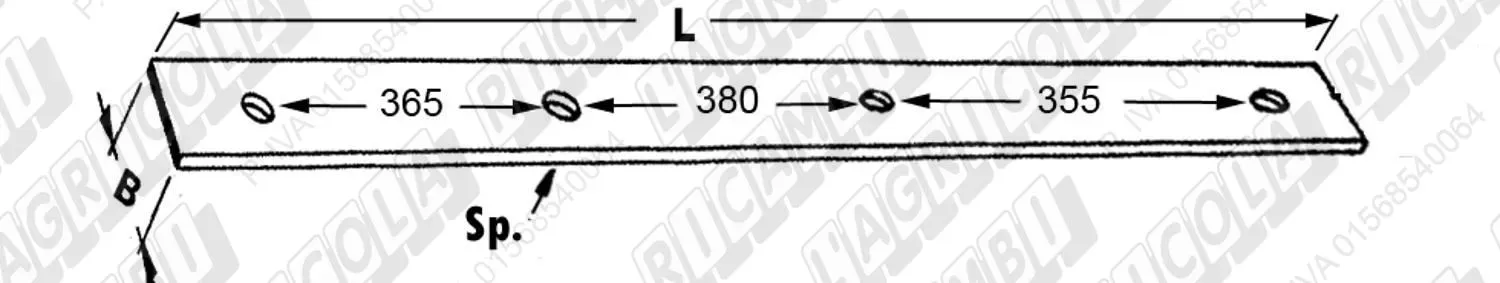

NR 1 58.318 GUIDA PISTONE PIATTA Inferiore
50 x 7 - L=1200 (4 Fori) (details)

Use on Gallignani,
Mod.146, Mod.4500, Mod.5000, Mod.5100, Mod.5190
Original Ref.: 05.03.044		 58.318
NR 1 58.318-A GUIDA PISTONE PIATTA Inferiore
80 x 8 - L=1235 (4 Fori) (details)

Use on Gallignani,
Mod.148, Mod.6000, Mod.6100, Mod.6190
Original Ref.: 15.03.044		 58.318-A

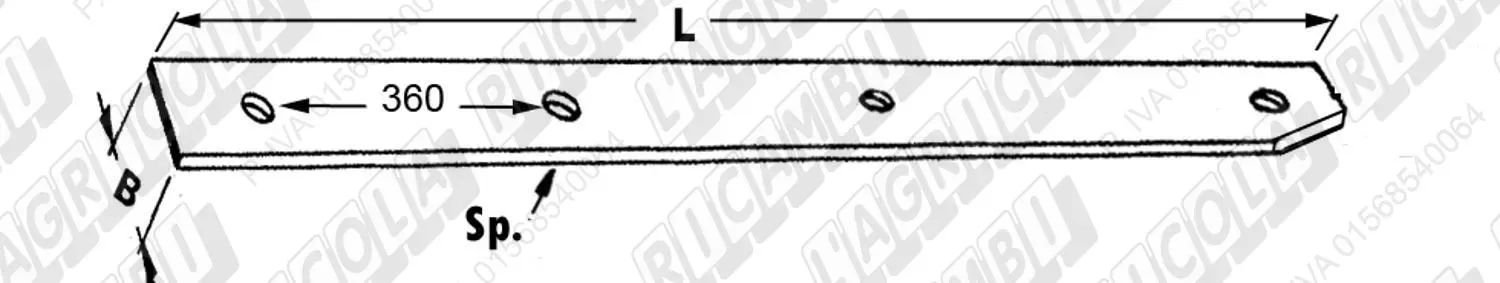

NR 1 58.319 GUIDA PISTONE PIATTA Inferiore
80 x 8 - L=1325 (4 Fori) (details)

Use on Gallignani,
Mod.149, Mod.149/S, Mod.7000, Mod.7100, Mod.7190
Original Ref.: 19.03.044		 58.319
NR 1 58.320 GUIDA PISTONE PIATTA Inferiore
60 x 5 - L=1270 (5 Fori) (details)

Use on M. Ferguson, Mod.8/10, Mod.15/10, Mod.20/10
Original Ref.: 642717 M6		 58.320

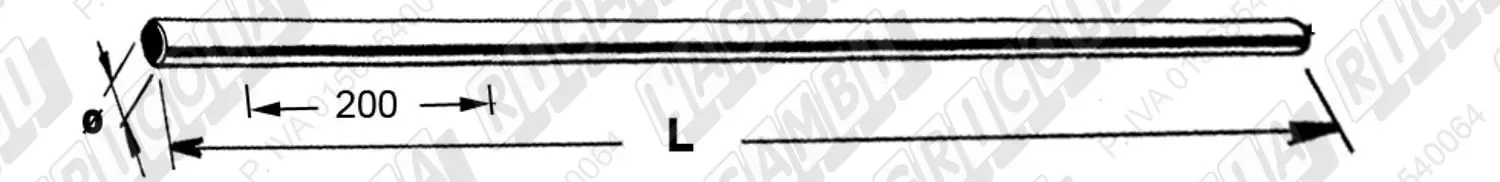

NR 1 58.324 GUIDA PISTONE TONDA
ø30 - L=1200 (6 Fori) (details)

Use on Welger, Mod.AP61, Mod.AP63, Mod.AP630
Original Ref.: 1116.03.02.05		 58.324

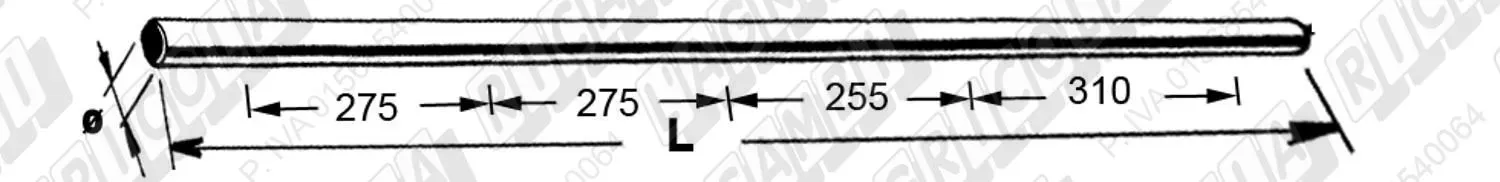

NR 1 58.325 GUIDA PISTONE TONDA
ø30 - L=1340 (5+5 Fori) (details)

Use on Welger, Mod.AP71, Mod.AP73, Mod.AP730
Original Ref.: 1119.03.03.01		 58.325

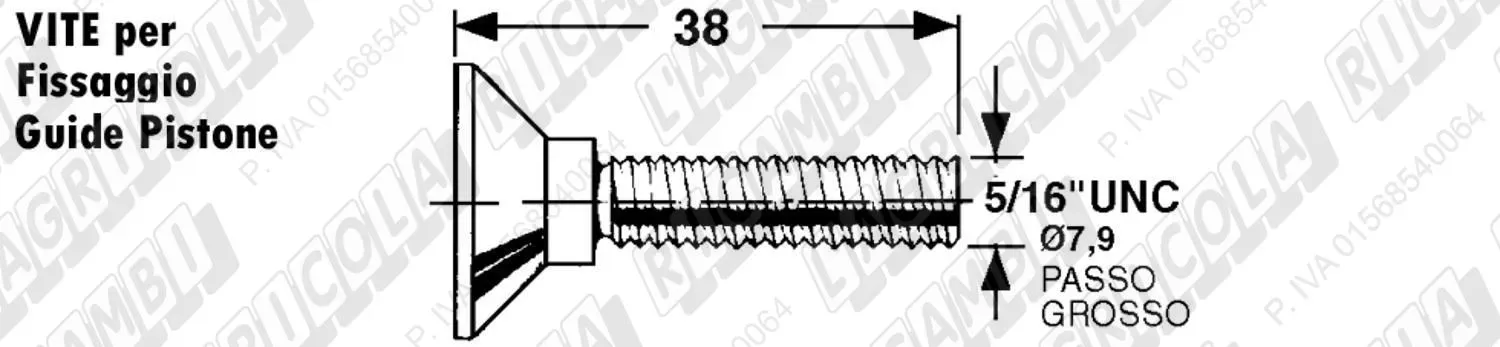

NR 10 58.644 VITE Testa Svasata 90° Quadro Sottotesta 5/16'UNC x 38 (details)

Use on New Holland,
Original Ref.: 87828

Use on Sgorbati,
Mod.131, Mod.132, Mod.133, Mod.138, Mod.171, Mod.181
Original Ref.: 2107/2340; 2107/2360		 58.644

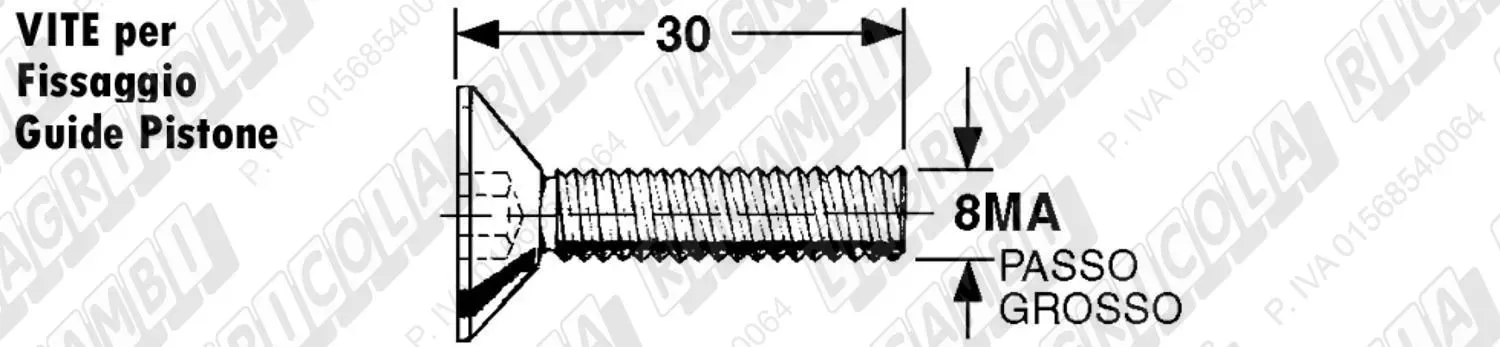

NR 25 58.645 VITE Testa Svasata 90° Cava Esagonale M 8 x 30 - Passo 1,25 - R=10,9 (K=4,5 D=16) (details)

Use on Gallignani,
Original Ref.: 88.50.323; 88.50.324		 58.645

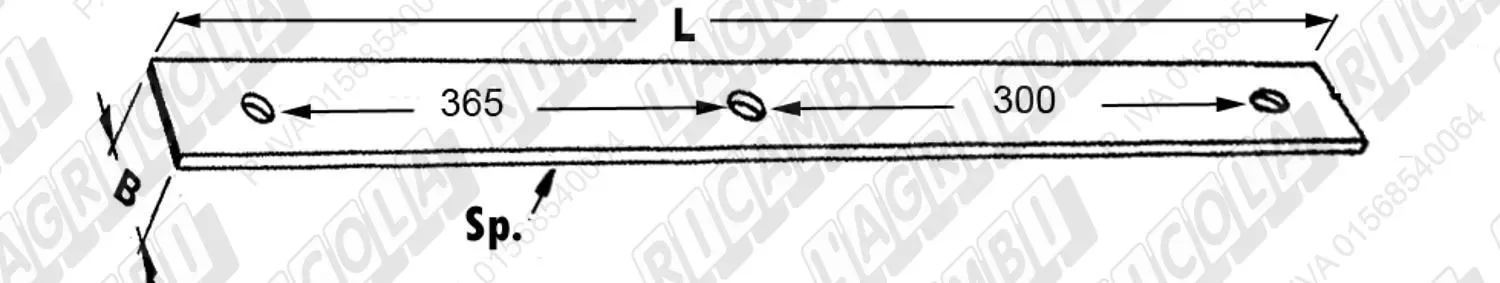

NR 1 64.345 GUIDA PISTONE PIATTA Superiore
50 x 8 - L=843 (3 Fori) (details)

Use on Gallignani, Mod.6000, Mod.6190
Original Ref.: 15.03.041		 64.345

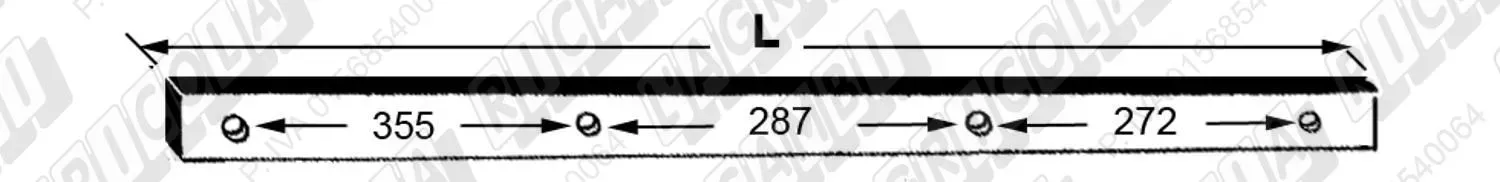

NR 1 64.347 GUIDA PISTONE PIATTA Laterale
25 x 10 - L=1035 (4 Fori) (details)

Use on Gallignani,
Mod.4500, Mod.6500, Mod.5000, Mod.5190
Original Ref.: 06.03.006; 06.03.048		 64.347
