Rulli Pistone e Dadi

BRANDS INDEX

  UM Packaging code description + Brand + Models + Original Ref. Drawing
NR 1 58.101 RULLO PISTONE 3/4' UNF (ø19) - Diam. 63,5 x 57 (details)

Use on John Deere, Mod.224
Original Ref.: AE 20220; AE 30220

Use on New Holland, Mod.1^ Serie
Original Ref.: 44457

Use on Sgorbati, Mod.Tutti
Original Ref.: 44457; 1111/3515		 58.101
NR 1 58.102 RULLO PISTONE M20 x 1,5 - Diam. 63,5 x 57 (details)

Use on New Holland, Mod.370 e Derivati, Mod.376 e Derivati
Original Ref.: 535664		 58.102

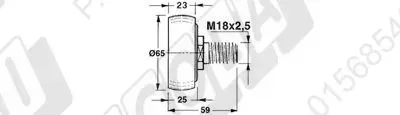

NR 1 58.103 RULLO PISTONE M18 x 2,5 - Diam. 65 x 59 (details)

Use on Welger, Mod.AP42, Mod.AP52, Mod.AP53, Mod.AP530
Original Ref.: 0924.50.04.00; 1121.16.05.00; 1121.16.05.01		 58.103
NR 1 58.104 RULLO PISTONE M18 x 1,5 - Diam. 63,5 x 56,5 (details)

Use on Gallignani, Mod.1500, Mod.1600, Mod.2600, Mod.1690, Mod.2690, Mod.3690, Mod.5690, Mod.5690/E
Original Ref.: 00.70.501; 00.70.506		 58.104

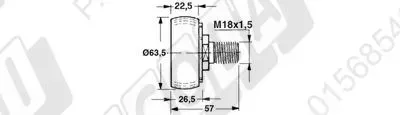

NR 1 58.105 RULLO PISTONE M18 x 1,5 - Diam. 63,5 x 57 (details)

Use on Ama, Modelli dal 1973
Original Ref.: OVR1663

Use on Lerda, Mod.Tutti		 58.105
NR 2 58.106 RULLO PISTONE M20 x 1,5 - Diam. 52 x 66,5 (details)

Use on Ama, Modelli fino al 1972
Original Ref.: 307-036A; 75A-428		 58.106

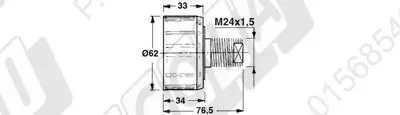

NR 1 58.107 RULLO PISTONE M24 x 1,5 - Diam. 62 x 76,5 (details)

Use on Ama, Mod.200, Mod.205
Original Ref.: 05-328

Use on Welger, Mod.AP50, Mod.AP51
Original Ref.: 0924.50.29.00; 1105.18.01.78		 58.107

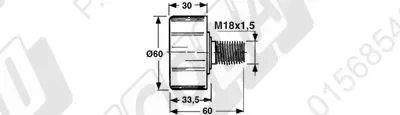

NR 1 58.112 RULLO PISTONE M18 x 1,5 - Diam. 60 x 60 (details)

Use on Rota, Mod.C2, Mod.L15		 58.112

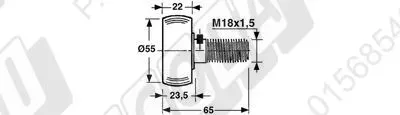

NR 2 58.113 RULLO PISTONE M18 x 1,5 - Diam. 55 x 65 (details)

Use on Rivierre Casalis, Tipo Leggero		 58.113

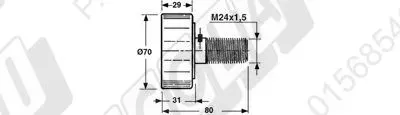

NR 2 58.114 RULLO PISTONE M24 x 1,5 - Diam. 70 x 80 (details)

Use on Rivierre Casalis, Tipo Pesante		 58.114

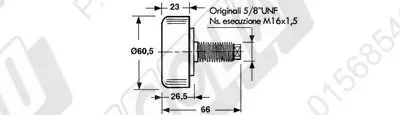

NR 2 58.116 RULLO PISTONE 5/8' UNF (ø15,9) - Diam. 60,5 x 66 (details)

Use on Bamfords, Mod.BL59
Original Ref.: BS 6210

Use on Jones Balers, Mod.MK16		 58.116
NR 2 58.117 RULLO PISTONE 5/8' UNF (ø15,9) - Diam. 63,5 x 66 (details)

Use on Bamfords, Mod.BL59
Original Ref.: BS 6210

Use on Jones Balers, Mod.MK5, Mod.MK15		 58.117

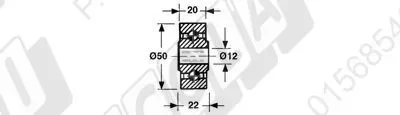

NR 2 58.118 RULLO PISTONE ø12 x Ø50 x 20/22 (details)

Use on Welger, Mod.AP41
Original Ref.: 0924.50.28.00; 1110.17.04.09		 58.118

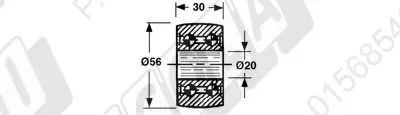

NR 2 58.119 RULLO PISTONE ø20 x Ø56 x 30 (details)

Use on Welger, Mod.AP45
Original Ref.: 0924.50.91.00; 1115.16.04.01		 58.119

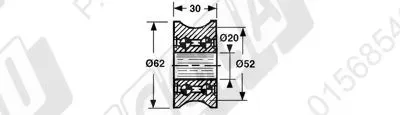

NR 4 58.120 RULLO PISTONE ø20 x Ø52/62 x 30 (details)

Use on Welger, Mod.AP61, Mod.AP63, Mod.AP73, Mod.AP630, Mod.AP730
Original Ref.: 0924.50.27.00; 1109.17.02.01		 58.120
NR 1 58.121 RULLO PISTONE ø25 x Ø80 x 15/25 (details)

Use on Welger, Mod.AP52 (Rullo Posteriore)
Original Ref.: 1121.16.06.03		 58.121
NR 2 58.122 RULLO PISTONE ø19,5 x Ø63,5 x 25,4/27 (details)

Use on John Deere, Mod.332 e Derivati, Mod.336 e Derivati, Mod.342 e Derivati
Original Ref.: 8680		 58.122

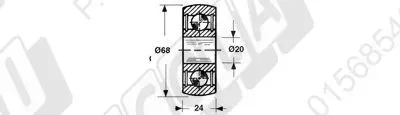

NR 2 58.123 RULLO PISTONE ø20 x Ø68 x 24 (details)

Use on Abbriata, Mod.Vari - Tipo Leggero		 58.123

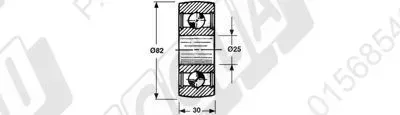

NR 2 58.124 RULLO PISTONE ø25 x Ø82 x 30 (details)

Use on Abbriata, Mod.Vari - Tipo Pesante		 58.124

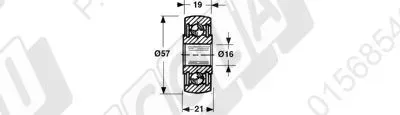

NR 2 58.125 RULLO PISTONE ø16 x Ø57 x 19/21 (details)

Use on Mc Cormick, Mod.B47
Original Ref.: 3100181 R91		 58.125
NR 1 58.126 RULLO PISTONE ø17 x Ø37/65 x 22/50 (details)

Use on Lerda, Mod.Vari (Tipo Laterale)
Original Ref.: 17.2.17		 58.126
NR 5 58.127 RULLO PISTONE ø16 x Ø50,8 x 15 (details)

Use on John Deere, Mod.332 e Derivati, Mod.336 e Derivati, Mod.342 e Derivati
Original Ref.: 8646

Use on Mc Cormick, Mod.430, Mod.440
Original Ref.: 667925 R91

Use on New Holland, Mod.Vari
Original Ref.: 535663; 56617		 58.127

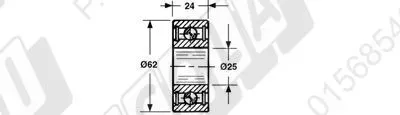

NR 2 58.128 RULLO PISTONE ø25 x Ø62 x 24 (details)

Use on Italo Svizzera, Mod.REKORD
Original Ref.: 62305-2RS		 58.128

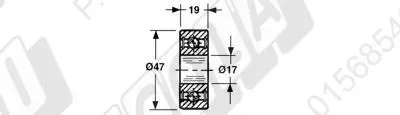

NR 2 58.129 RULLO PISTONE ø17 x Ø47 x 19 (details)

Use on Italo Svizzera, Mod.JUNIOR
Original Ref.: BL17		 58.129

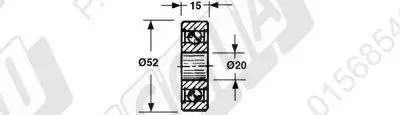

NR 2 58.130 RULLO PISTONE ø20 x Ø52 x 15 (details)

Use on Bautz, Mod.COMPACT 410, Mod.COMPACT 460		 58.130
NR 5 58.150DADO M18 - Passo 1,5 (Esagono 27 x Spess. 18) (details)

Use on Ama,

Use on Gallignani,
Original Ref.: 00.51.137

Use on Lerda, 		58.150
NR 5 58.151DADO M20 - Passo 1,5 (Esagono 30 x Spess. 9) (details)

Use on Ama,

Use on New Holland,
NR 5 58.152DADO M24 - Passo 1,5 (Esagono 36 x Spess. 10) (details)

Use on Ama,

Use on Welger,
NR 5 58.153DADO 3/4' UNF (Esagono 27 x Spess. 16) (details)

Use on New Holland,

Use on Sgorbati,
NR 5 58.154DADO M18 - Passo 2,5 (Esagono 27 x Spess. 18) (details)

Use on Gallignani,

Use on Welger,
