Catalogue home > Search by sector > Settore Lavorazione Terreno > Vibrocoltivatori, Livellatrici, Coltivatori, Tiller, Erpici Fissi > Spring Tines for Vibrocultivators "CHISEL"

Spring Tines for Vibrocultivators "CHISEL"
  UM Packaging code description + Brand + Models + Original Ref. Drawing
NR 25
50		 75.134SCREW Testa Svasata 90° Quadro Sottotesta M12 x 50 - Passo 1,75 - R= 8.8 (K=12,5 D=24,5 Q=12) con Dado (details)

Use on Chisel, 		75.134

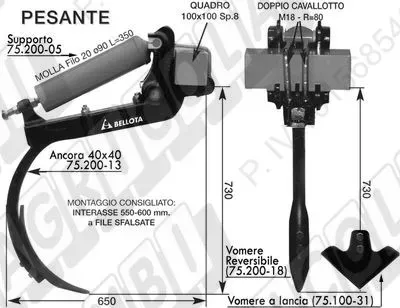

NR 1 75.200-05SUPPORT per Vibrocoltivatore PESANTE
(senza Ancora) (details)

Use on Chisel, 		75.200-05
NR 1 75.200-13TIP Sezione Quadra 40x40 (details)

Use on Chisel,

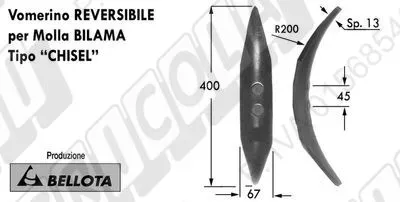

NR 6 75.200-18POINT 2 Fori CURVO (67x13x400) (details)

Prod. Bellota,
Original Ref.: 1537 B CA

Use on Chisel, 		75.200-18
NR 5 75.100-31 POINT a LANCIA (270x6)
Stampata a CALDO (details)

Prod. Bellota,
Original Ref.: 1513 AC NER		 75.100-31

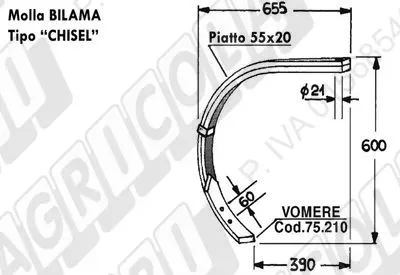

NR 1 75.202 CULTIVATOR TINE BILAMA con Vomere (details)

Use on Chisel, 		75.202

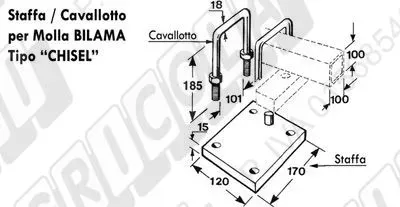

NR 1 75.205CLAMP per Telaio 100x100 (details)

Use on Chisel, 		75.205
NR 2 75.207U-BOLT M18 (details)

Use on Chisel,

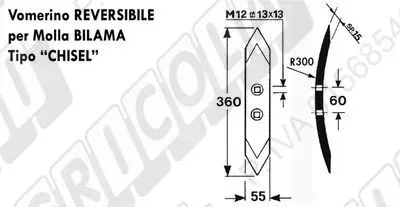

NR 5 75.210POINT 2 Fori (55x15x355) (details)

Use on Chisel, 		75.210
NR 3 75.211 POINT 2 Fori (130x20x440) (details)

Use on Chisel, 		75.211
