UM |
|
codice |
descrizione + Marca + Modelli + Rif. Originale |
Disegno |
|
NR |
2 |

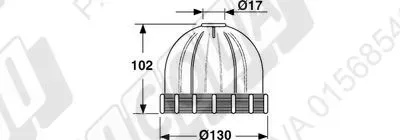

72.000 |
COPPA SIFONE in Plexiglass (dettagli) |
|
|
NR |
2 |

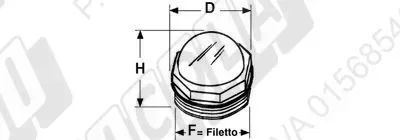

72.001 | SPIA in PLEXIGLASS per Livello Carri Botte Filetto 2" D = 68 - H = 45 - Fil. 2" = ø59,6 (dettagli) |
|
|
NR |
2 |
72.002 | SPIA in PLEXIGLASS per Livello Carri Botte Filetto 3" D = 100 - H = 73 - Fil. 3" = ø87 (dettagli) |
|
NR |
2 |

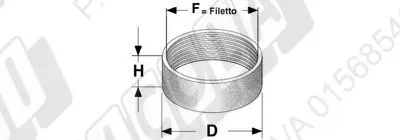

72.002-A | GHIERA Filetto 2" per Spia Livello Carri Botte D = 67 - H = 27 - Fil. 2" = ø57 (dettagli) |
|
|
NR |
2 |
72.002-B | GHIERA Filetto 3" per Spia Livello Carri Botte D = 95 - H = 30 - Fil. 3" = ø85,5 (dettagli) |
|
NR |
10 |
72.003 | GUARNIZIONI O-RING 162 per Spia da 2" = ø59 (dettagli) |
|
|
NR |
10 |
72.004 | GUARNIZIONI O-RING 176 per Spia da 3" = ø87 (dettagli) |
|
NR |
2 |

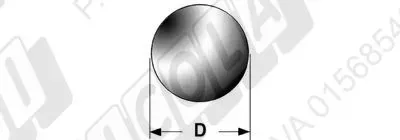

72.005 | SFERA in GOMMA ø60 per Carri Botte (dettagli) |
|
|
NR |
2 |
72.006 | SFERA in GOMMA ø80 per Carri Botte (dettagli) |
|
NR |
1 |
72.007 | SFERA in GOMMA ø100 per Carri Botte (dettagli) |
|
NR |
1 |
72.008 | MANOVUOTOMETRO 3/8" x 80 per Carri Botte (dettagli) |
|
|
NR |
1 |
72.008-A | MANOVUOTOMETRO 1/2" x 100 per Carri Botte (dettagli) |
|
NR |
2 |
72.009-A |
MANOMETRO con Glicerina 0-80 Bar con Attacco Radiale 1/4" per Pompe Irroratrici (In acciaio Inox) (dettagli) |
|
|
CF |
1 |
72.010 | PALETTE in CELERON (SERIE N. 8 PALETTE) 4 x 30 x 210 (dettagli) |
|
|
CF |
1 |
72.020 | PALETTE in CELERON (SERIE N. 8 PALETTE) 4 x 35 x 215 (dettagli) |
|
CF |
1 |
72.030 | PALETTE in CELERON (SERIE N. 8 PALETTE) 6 x 35 x 215 (dettagli) |
|
CF |
1 |
72.040 | PALETTE in CELERON (SERIE N. 8 PALETTE) 6 x 39 x 215 (dettagli) |
|
CF |
1 |
72.050 | PALETTE in CELERON (SERIE N. 8 PALETTE) 7 x 54 x 330 (dettagli) |
|
NR |
1 |
72.100 | STECCA in CELERON 4,0 x 30 (dettagli) |
|
|
NR |
1 |
72.102 | STECCA in CELERON 4,0 x 35 (dettagli) |
|
NR |
1 |
72.104 | STECCA in CELERON 4,5 x 32 (dettagli) |
|
NR |
1 |
72.106 | STECCA in CELERON 4,5 x 35 (dettagli) |
|
NR |
1 |
72.108 | STECCA in CELERON 5,0 x 35 (dettagli) |
|
NR |
1 |
72.110 | STECCA in CELERON 5,0 x 38 (dettagli) |
|
NR |
1 |
72.111 | STECCA in CELERON 5,0 x 45 (dettagli) |
|
NR |
1 |
72.112 | STECCA in CELERON 5,5 x 35 (dettagli) |
|
NR |
1 |
72.114 | STECCA in CELERON 5,5 x 40 (dettagli) |
|
NR |
1 |
72.116 | STECCA in CELERON 6,0 x 34,5 (dettagli) |
|
NR |
1 |
72.118 | STECCA in CELERON 6,0 x 40 (dettagli) |
|
NR |
1 |
72.120 | STECCA in CELERON 6,0 x 45 (dettagli) |
|
NR |
1 |
72.122 | STECCA in CELERON 6,0 x 50 (dettagli) |
|
NR |
1 |
72.124 | STECCA in CELERON 6,0 x 55 (dettagli) |
|
NR |
1 |
72.126 | STECCA in CELERON 6,0 x 60 (dettagli) |
|
NR |
1 |
72.127 | STECCA in CELERON 6,5 x 40 (dettagli) |
|
NR |
1 |
72.128 | STECCA in CELERON 6,5 x 45 (dettagli) |
|
NR |
1 |
72.130 | STECCA in CELERON 6,5 x 50 (dettagli) |
|
NR |
1 |
72.132 | STECCA in CELERON 6,5 x 55 (dettagli) |
|
NR |
1 |
72.134 | STECCA in CELERON 6,5 x 60 (dettagli) |
|
NR |
1 |
72.136 | STECCA in CELERON 7,0 x 36,5 (dettagli) |
|
NR |
1 |
72.138 | STECCA in CELERON 7,0 x 45 (dettagli) |
|
NR |
1 |
72.140 | STECCA in CELERON 7,0 x 50 (dettagli) |
|
NR |
1 |
72.142 | STECCA in CELERON 7,0 x 54 (dettagli) |
|
NR |
1 |
72.144 | STECCA in CELERON 7,0 x 60 (dettagli) |
|
NR |
1 |
72.146 | STECCA in CELERON 7,5 x 38 (dettagli) |
|
NR |
1 |
72.148 | STECCA in CELERON 7,5 x 40 (dettagli) |
|
NR |
1 |
72.150 | STECCA in CELERON 7,5 x 42 (dettagli) |
|
NR |
1 |
72.151 | STECCA in CELERON 7,5 x 45 (dettagli) |
|
NR |
1 |
72.152 | STECCA in CELERON 7,5 x 48 (dettagli) |
|
NR |
1 |
72.154 | STECCA in CELERON 7,5 x 50 (dettagli) |
|
NR |
1 |
72.156 | STECCA in CELERON 7,5 x 60 (dettagli) |
|
NR |
1 |
72.157 | STECCA in CELERON 7,5 x 70 (dettagli) |
|
NR |
1 |
72.158 | STECCA in CELERON 8,0 x 55 (dettagli) |
|
NR |
1 |
72.160 | STECCA in CELERON 8,0 x 62 (dettagli) |
|
NR |
1 |
72.161 | STECCA in CELERON 8,0 x 75 (dettagli) |
|
NR |
1 |
72.161-A | STECCA in CELERON 8,5 x 62 (dettagli) |
|
NR |
1 |
72.162 | STECCA in CELERON 9,0 x 54 (dettagli) |
|
NR |
1 |
72.164 | STECCA in CELERON 9,0 x 62 (dettagli) |
|
NR |
1 |
72.166 | STECCA in CELERON 9,3 x 60 (dettagli) |
|
NR |
1 |
72.167 | STECCA in CELERON 9,3 x 70 (dettagli) |
|
NR |
1 |
72.168 | STECCA in CELERON 10 x 45 (dettagli) |
|
NR |
1 |
72.170 | STECCA in CELERON 11,5 x 75 (dettagli) |
